Annex60.Fluid.FMI.Conversion.Validation

IEA EBC Annex 60

Annex60.Fluid.FMI.Conversion.Validation

Collection of models that illustrate model use and test models

Information

This package contains examples for the use of models that can be found in Annex60.Fluid.FMI.Conversion.

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Package Content

Name	Description
AirToOutlet	Validation model for air to outlet conversion
AirToOutletFlowReversal	Validation model for air to outlet converter with flow reversal enabled
InletToAirDryAir	Validation model for inlet to air with dry air medium
InletToAirDryAirCO2	Validation model for inlet to air with dry air medium and CO2
InletToAirMoistAir	Validation model for inlet to Annex60.Media.Air conversion without trace substances
InletToAirMoistAirCO2	Validation model for inlet to Annex60.Media.Air conversion with C02 trace substances

Annex60.Fluid.FMI.Conversion.Validation.AirToOutlet

Validation model for air to outlet conversion

Annex60.Fluid.FMI.Conversion.Validation.AirToOutlet

Information

This example validates the conversion model Annex60.Fluid.FMI.Conversion.AirToOutlet for the situation without reverse flow.

The conversion elements all have either a dry or moist air medium, with our without trace substances, in order to test all combinations of air.

Extends from Modelica.Icons.Example (Icon for runnable examples).

Parameters

Type	Name	Default	Description
Boolean	allowFlowReversal	false	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Modelica definition

model AirToOutlet "Validation model for air to outlet conversion" extends Modelica.Icons.Example; parameter Boolean allowFlowReversal = false "= true to allow flow reversal, false restricts to design direction (inlet -> outlet)"; Modelica.Blocks.Sources.Constant m_flow(k=0.2) "Mass flow rate"; Modelica.Blocks.Sources.Constant h(k=3E5) "Specific enthalpy"; Modelica.Blocks.Sources.Constant Xi[1](k={0.01}) "Water vapor concentration"; Modelica.Blocks.Sources.Constant C[1](k={1E-5}) "Trace substances"; Annex60.Fluid.FMI.Conversion.AirToOutlet conAirNoC( redeclare package Medium = Annex60.Media.Air, final allowFlowReversal=allowFlowReversal) "Converter for air without trace substances"; Annex60.Fluid.FMI.Conversion.AirToOutlet conAirWithC( redeclare package Medium = Annex60.Media.Air(extraPropertiesNames={"CO2"}), final allowFlowReversal=allowFlowReversal) "Converter for air with trace substances"; Annex60.Fluid.FMI.Conversion.AirToOutlet conDryAirNoC( redeclare package Medium = Modelica.Media.Air.SimpleAir, final allowFlowReversal=allowFlowReversal) "Converter for dry air without trace substances"; Annex60.Fluid.FMI.Conversion.AirToOutlet conDryAirWithC( redeclare package Medium = Modelica.Media.Air.SimpleAir(extraPropertiesNames={"CO2"}), final allowFlowReversal=allowFlowReversal) "Converter for dry air with trace substances"; equation connect(m_flow.y, conAirNoC.m_flow); connect(h.y, conAirNoC.h); connect(Xi.y, conAirNoC.Xi); connect(m_flow.y, conAirWithC.m_flow); connect(h.y, conAirWithC.h); connect(Xi.y, conAirWithC.Xi); connect(m_flow.y, conDryAirNoC.m_flow); connect(h.y, conDryAirNoC.h); connect(m_flow.y, conDryAirWithC.m_flow); connect(h.y, conDryAirWithC.h); connect(C.y, conAirWithC.C); connect(C.y, conDryAirWithC.C); end AirToOutlet;

Annex60.Fluid.FMI.Conversion.Validation.AirToOutletFlowReversal

Validation model for air to outlet converter with flow reversal enabled

Annex60.Fluid.FMI.Conversion.Validation.AirToOutletFlowReversal

Information

This example is identical to Annex60.Fluid.FMI.Conversion.Validation.AirToOutlet, except that it has reverse flow. This tests whether the fluid properties from the upstream media are correctly converted to the output signals of Annex60.Fluid.FMI.Conversion.AirToOutlet.

Extends from Annex60.Fluid.FMI.Conversion.Validation.AirToOutlet (Validation model for air to outlet conversion).

Parameters

Type	Name	Default	Description
Boolean	allowFlowReversal	true	= true to allow flow reversal, false restricts to design direction (inlet -> outlet)

Modelica definition

model AirToOutletFlowReversal "Validation model for air to outlet converter with flow reversal enabled" extends Annex60.Fluid.FMI.Conversion.Validation.AirToOutlet( allowFlowReversal = true); BoundaryCondition bouAirNoC( redeclare package Medium = Annex60.Media.Air ( X_default={0.015, 0.985})) "Boundary condition"; BoundaryCondition bouAirWithC( redeclare package Medium = Annex60.Media.Air ( X_default={0.015, 0.985}, extraPropertiesNames={"CO2"})) "Boundary condition"; BoundaryCondition bouDryAirNoC( redeclare package Medium = Modelica.Media.Air.SimpleAir) "Boundary condition"; BoundaryCondition bouDryAirWithC( redeclare package Medium = Modelica.Media.Air.SimpleAir ( extraPropertiesNames={"CO2"})) "Boundary condition"; protected model BoundaryCondition extends Modelica.Blocks.Icons.Block; replaceable package Medium = Modelica.Media.Interfaces.PartialMedium "Medium in the component"; final parameter Boolean use_p_in=false "= true to use a pressure from connector, false to output Medium.p_default"; Adaptors.Inlet bouInlAirNoC( redeclare package Medium = Medium, allowFlowReversal=true, use_p_in=false) "Boundary condition for air inlet"; Sources.Boundary_pT bou( redeclare package Medium = Medium, nPorts=1, p=Medium.p_default + 1000, T=298.15, C=fill(0.7, Medium.nC)) "Boundary condition"; Interfaces.Inlet inlet( use_p_in=use_p_in, redeclare package Medium = Medium, allowFlowReversal=true) "Fluid inlet"; FixedResistances.PressureDrop res( redeclare package Medium = Medium, m_flow_nominal=0.1, dp_nominal=1000, linearized=true) "Flow resistance"; equation connect(bouInlAirNoC.inlet, inlet); connect(res.port_b, bou.ports[1]); connect(res.port_a, bouInlAirNoC.port_b); end BoundaryCondition; equation connect(bouAirNoC.inlet, conAirNoC.outlet); connect(bouAirWithC.inlet, conAirWithC.outlet); connect(bouDryAirNoC.inlet, conDryAirNoC.outlet); connect(bouDryAirWithC.inlet, conDryAirWithC.outlet); end AirToOutletFlowReversal;

Annex60.Fluid.FMI.Conversion.Validation.InletToAirDryAir

Validation model for inlet to air with dry air medium

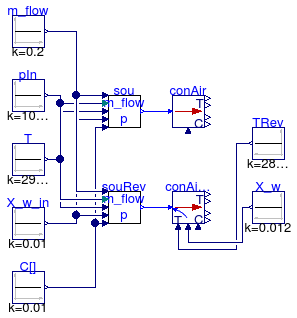

Annex60.Fluid.FMI.Conversion.Validation.InletToAirDryAir

Information

This validation test is identical to Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAir except that it uses a medium model without moisture. Hence, it tests whether the water vapor connectors are correctly removed.

Extends from Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAir (Validation model for inlet to Annex60.Media.Air conversion without trace substances).

Parameters

Type	Name	Default	Description
replaceable package Medium		Air	Medium model
Boolean	use_p_in	false	= true to use a pressure from connector, false to output Medium.p_default

Connectors

Type	Name	Description
replaceable package Medium		Medium model

Modelica definition

model InletToAirDryAir "Validation model for inlet to air with dry air medium" extends Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAir( redeclare package Medium = Modelica.Media.Air.SimpleAir); end InletToAirDryAir;

Annex60.Fluid.FMI.Conversion.Validation.InletToAirDryAirCO2

Validation model for inlet to air with dry air medium and CO2

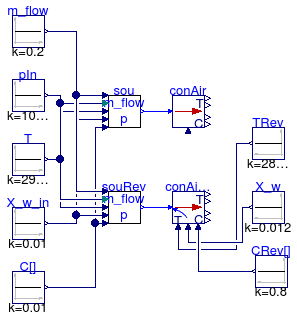

Annex60.Fluid.FMI.Conversion.Validation.InletToAirDryAirCO2

Information

This validation test is identical to Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAirCO2 except that it uses a medium model without moisture. Hence, it tests whether the water vapor connectors are correctly removed.

Extends from Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAirCO2 (Validation model for inlet to Annex60.Media.Air conversion with C02 trace substances).

Parameters

Type	Name	Default	Description
Boolean	use_p_in	false	= true to use a pressure from connector, false to output Medium.p_default

Modelica definition

model InletToAirDryAirCO2 "Validation model for inlet to air with dry air medium and CO2" extends Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAirCO2( redeclare package Medium = Modelica.Media.Air.SimpleAir(extraPropertiesNames={"CO2"})); end InletToAirDryAirCO2;

Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAir

Validation model for inlet to Annex60.Media.Air conversion without trace substances

Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAir

Information

This example validates the conversion model Annex60.Fluid.FMI.Conversion.InletToAir . The medium used is Annex60.Media.Air without trace substances. The top model has no reverse flow, whereas the bottom model has reverse flow.

Extends from Modelica.Icons.Example (Icon for runnable examples).

Parameters

Type	Name	Default	Description
replaceable package Medium		Annex60.Media.Air	Medium model
Boolean	use_p_in	false	= true to use a pressure from connector, false to output Medium.p_default

Connectors

Type	Name	Description
replaceable package Medium		Medium model

Modelica definition

model InletToAirMoistAir "Validation model for inlet to Annex60.Media.Air conversion without trace substances" extends Modelica.Icons.Example; replaceable package Medium = Annex60.Media.Air constrainedby Modelica.Media.Interfaces.PartialMedium "Medium model"; parameter Boolean use_p_in = false "= true to use a pressure from connector, false to output Medium.p_default"; Modelica.Blocks.Sources.Constant m_flow(k=0.2) "Mass flow rate"; Modelica.Blocks.Sources.Constant T(k=295.13) "Room temperature"; Annex60.Fluid.FMI.Conversion.InletToAir conAir( redeclare package Medium = Medium, allowFlowReversal=false) "Converter for air"; Source_T sou( redeclare package Medium = Medium, use_p_in=use_p_in, allowFlowReversal=false) "Source for mass flow rate and pressure"; Modelica.Blocks.Sources.Constant pIn(k=100000) "Inlet pressure"; Modelica.Blocks.Sources.Constant X_w_in(k=0.01) "Inlet mass fraction"; Modelica.Blocks.Sources.Constant C[Medium.nC](each k=0.01) if Medium.nC > 0 "Trace substances for forward flow"; Annex60.Fluid.FMI.Conversion.InletToAir conAirRevFlo(redeclare package Medium = Medium, allowFlowReversal=true) "Converter for air with reverse flow"; Source_T souRev( redeclare package Medium = Medium, use_p_in=use_p_in, allowFlowReversal=true) "Source for mass flow rate and pressure with reverse flow"; Modelica.Blocks.Sources.Constant TRev(k=283.15) "Temperature for reverse flow"; Modelica.Blocks.Sources.Constant X_w(k=0.012) "Mass flow fraction for reverse flow"; equation connect(m_flow.y, sou.m_flow_in); connect(sou.outlet, conAir.inlet); connect(sou.T_in, T.y); connect(pIn.y, sou.p_in); connect(X_w_in.y, sou.X_w_in); connect(C.y, sou.C_in); connect(m_flow.y, souRev.m_flow_in); connect(souRev.outlet, conAirRevFlo.inlet); connect(souRev.T_in, T.y); connect(pIn.y, souRev.p_in); connect(X_w_in.y, souRev.X_w_in); connect(C.y, souRev.C_in); connect(TRev.y, conAirRevFlo.TAirZon); connect(X_w.y, conAirRevFlo.X_wZon); end InletToAirMoistAir;

Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAirCO2

Validation model for inlet to Annex60.Media.Air conversion with C02 trace substances

Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAirCO2

Information

This example validates the conversion model Annex60.Fluid.FMI.Conversion.InletToAir . It is identical to Annex60.Fluid.FMI.Conversion.Validation.InletToAirMoistAir except that the medium has C02 trace substances.

Extends from Annex60.Fluid.FMI.Conversion.Validation.InletToAirDryAir (Validation model for inlet to air with dry air medium).

Parameters

Type	Name	Default	Description
Boolean	use_p_in	false	= true to use a pressure from connector, false to output Medium.p_default

Modelica definition

model InletToAirMoistAirCO2 "Validation model for inlet to Annex60.Media.Air conversion with C02 trace substances" extends Annex60.Fluid.FMI.Conversion.Validation.InletToAirDryAir( redeclare package Medium = Annex60.Media.Air(extraPropertiesNames={"CO2"})); Modelica.Blocks.Sources.Constant CRev[Medium.nC](each k=0.8) "Trace substance for reverse flow"; equation connect(CRev.y, conAirRevFlo.CZon); end InletToAirMoistAirCO2;

Annex60.Fluid.FMI.Conversion.Validation.AirToOutletFlowReversal.BoundaryCondition

Information

Extends from Modelica.Blocks.Icons.Block (Basic graphical layout of input/output block).

Parameters

Type	Name	Default	Description
replaceable package Medium		Modelica.Media.Interfaces.Pa...	Medium in the component

Connectors

Type	Name	Description
replaceable package Medium		Medium in the component
Inlet	inlet	Fluid inlet

Modelica definition

model BoundaryCondition extends Modelica.Blocks.Icons.Block; replaceable package Medium = Modelica.Media.Interfaces.PartialMedium "Medium in the component"; final parameter Boolean use_p_in=false "= true to use a pressure from connector, false to output Medium.p_default"; Adaptors.Inlet bouInlAirNoC( redeclare package Medium = Medium, allowFlowReversal=true, use_p_in=false) "Boundary condition for air inlet"; Sources.Boundary_pT bou( redeclare package Medium = Medium, nPorts=1, p=Medium.p_default + 1000, T=298.15, C=fill(0.7, Medium.nC)) "Boundary condition"; Interfaces.Inlet inlet( use_p_in=use_p_in, redeclare package Medium = Medium, allowFlowReversal=true) "Fluid inlet"; FixedResistances.PressureDrop res( redeclare package Medium = Medium, m_flow_nominal=0.1, dp_nominal=1000, linearized=true) "Flow resistance"; equation connect(bouInlAirNoC.inlet, inlet); connect(res.port_b, bou.ports[1]); connect(res.port_a, bouInlAirNoC.port_b); end BoundaryCondition;
