Annex60.Fluid.FMI.Adaptors.Examples

Collection of models that illustrate model use and test models

Information

This package contains examples for the use of models that can be found in Annex60.Fluid.FMI.Adaptors.

Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).

Package Content

Name Description
Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust ThermalZoneHVACNoExhaust Example of a thermal zone and an HVAC system both exposed using the FMI adaptor
Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACWithExhaust ThermalZoneHVACWithExhaust Example of a thermal zone and an HVAC system both exposed using the FMI adaptor

Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust

Example of a thermal zone and an HVAC system both exposed using the FMI adaptor

Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust

Information

This example demonstrates how to use the adaptors Annex60.Fluid.FMI.Adaptors.HVAC and Annex60.Fluid.FMI.Adaptors.ThermalZone

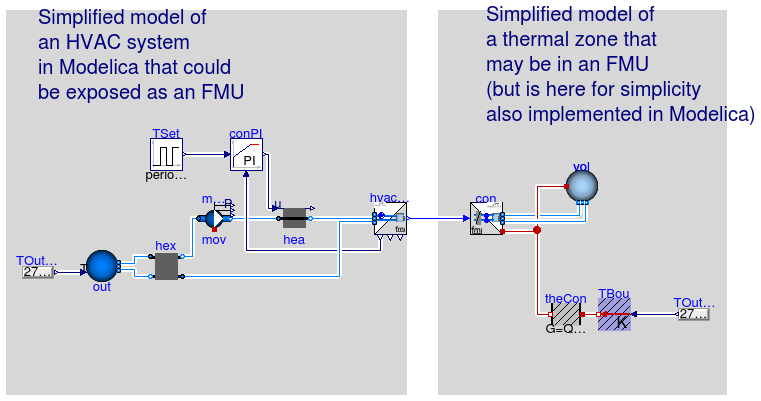

On the left hand side is an HVAC system with supply and return air stream. These are all connected to the adaptor. On the right of the adaptor is a simple room model, approximated by a volume with first order dynamics and heat loss to the ambient.

Note that the there is zero net air flow into and out of the volume vol because the adaptor hvacAda conserves mass. Hence, any infiltration or exfiltration needs to be connected to the adaptor hvacAda, rather than the volume vol.

Extends from Modelica.Icons.Example (Icon for runnable examples).

Parameters

TypeNameDefaultDescription
replaceable package MediumAAnnex60.Media.AirMedium for air
HeatFlowRateQ_flow_nominal30*6*6Nominal heat loss of the room [W]
VolumeVRoo6*6*2.7Room volume [m3]
MassFlowRatem_flow_nominalVRoo*2*1.2/3600Nominal mass flow rate [kg/s]

Connectors

TypeNameDescription
replaceable package MediumAMedium for air

Modelica definition

model ThermalZoneHVACNoExhaust "Example of a thermal zone and an HVAC system both exposed using the FMI adaptor" extends Modelica.Icons.Example; replaceable package MediumA = Annex60.Media.Air "Medium for air"; Annex60.Fluid.FMI.Adaptors.HVAC hvacAda( redeclare final package Medium=MediumA, nPorts=2) "Adaptor for an HVAC system that is exposed through an FMI interface"; parameter Modelica.SIunits.HeatFlowRate Q_flow_nominal = 30*6*6 "Nominal heat loss of the room"; parameter Modelica.SIunits.Volume VRoo = 6*6*2.7 "Room volume"; parameter Modelica.SIunits.MassFlowRate m_flow_nominal=VRoo*2*1.2/3600 "Nominal mass flow rate"; Annex60.Fluid.FMI.Adaptors.ThermalZone con( redeclare package Medium = MediumA, nPorts=2) "Adaptor for thermal zone"; Modelica.Blocks.Sources.Pulse TSet( amplitude=4, period=86400, offset=273.15 + 16, startTime=7*3600) "Setpoint for room temperature"; Controls.Continuous.LimPID conPI( controllerType=Modelica.Blocks.Types.SimpleController.PI, k=1, yMax=1, yMin=0, Ti=120) "Controller"; Movers.FlowControlled_m_flow mov( redeclare package Medium = MediumA, m_flow_nominal=m_flow_nominal, addPowerToMedium=false, nominalValuesDefineDefaultPressureCurve=true, dp_nominal=1200, inputType=Annex60.Fluid.Types.InputType.Constant, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, filteredSpeed=false) "Fan or pump"; HeatExchangers.HeaterCooler_u hea( redeclare package Medium = MediumA, m_flow_nominal=m_flow_nominal, dp_nominal=1000, Q_flow_nominal=Q_flow_nominal, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState) "Heater"; Sources.Boundary_pT out( redeclare package Medium = MediumA, nPorts=2, use_T_in=true) "Pressure and temperature source for outdoor"; HeatExchangers.ConstantEffectiveness hex( redeclare package Medium1 = MediumA, redeclare package Medium2 = MediumA, m1_flow_nominal=m_flow_nominal, m2_flow_nominal=m_flow_nominal, dp1_nominal=200, dp2_nominal=200) "Heat recovery"; MixingVolumes.MixingVolume vol( redeclare package Medium = MediumA, mSenFac=3, m_flow_nominal=m_flow_nominal, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, V=VRoo, nPorts=2) "Room volume"; Modelica.Thermal.HeatTransfer.Components.ThermalConductor theCon(G= Q_flow_nominal/20) "Thermal conductance with the ambient"; Modelica.Thermal.HeatTransfer.Sources.PrescribedTemperature TBou "Fixed temperature boundary condition"; Modelica.Blocks.Sources.RealExpression TOutZon( y=273.15 + 16 - 5*cos(time/86400*2*Modelica.Constants.pi)) "Outdoor temperature used for the thermal zone model"; Modelica.Blocks.Sources.RealExpression TOutHVAC( y=273.15 + 16 - 5*cos(time/86400*2*Modelica.Constants.pi)) "Outdoor temperature used for the HVAC model"; equation connect(mov.port_b,hea. port_a); connect(hex.port_b1,mov. port_a); connect(out.ports[1],hex. port_b2); connect(out.ports[2],hex. port_a1); connect(conPI.y, hea.u); connect(TBou.port,theCon. port_a); connect(vol.heatPort, theCon.port_b); connect(conPI.u_s, TSet.y); connect(TOutZon.y, TBou.T); connect(hvacAda.TAirZon[1], conPI.u_m); connect(con.ports[1], vol.ports[1]); connect(vol.heatPort, con.heaPorAir); connect(con.ports[2], vol.ports[2]); connect(hvacAda.fluPor, con.fluPor); connect(hea.port_b, hvacAda.ports[1]); connect(hvacAda.ports[2], hex.port_a2); connect(TOutHVAC.y, out.T_in); end ThermalZoneHVACNoExhaust;

Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACWithExhaust Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACWithExhaust

Example of a thermal zone and an HVAC system both exposed using the FMI adaptor

Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACWithExhaust

Information

This example demonstrates how to use the adaptors Annex60.Fluid.FMI.Adaptors.HVAC and Annex60.Fluid.FMI.Adaptors.ThermalZone

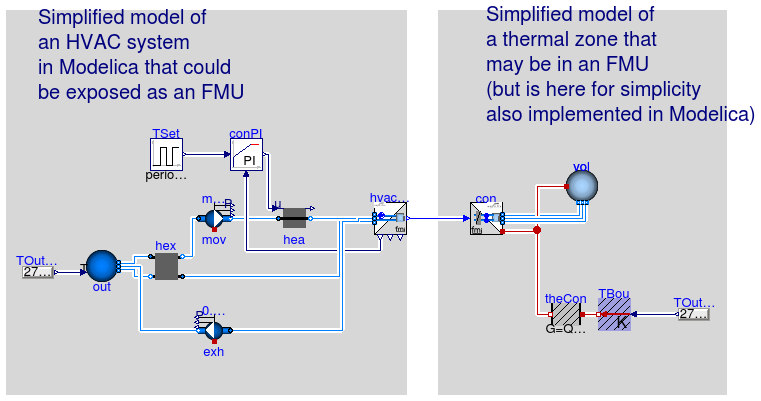

It is identical to Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust except that it adds a forced exhaust air stream.

Extends from Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust (Example of a thermal zone and an HVAC system both exposed using the FMI adaptor).

Parameters

TypeNameDefaultDescription
replaceable package MediumAAirMedium for air
HeatFlowRateQ_flow_nominal30*6*6Nominal heat loss of the room [W]
VolumeVRoo6*6*2.7Room volume [m3]
MassFlowRatem_flow_nominalVRoo*2*1.2/3600Nominal mass flow rate [kg/s]

Modelica definition

model ThermalZoneHVACWithExhaust "Example of a thermal zone and an HVAC system both exposed using the FMI adaptor" extends Annex60.Fluid.FMI.Adaptors.Examples.ThermalZoneHVACNoExhaust( hvacAda(nPorts=3), out(nPorts=3), con(nPorts=3), vol(nPorts=3)); Movers.FlowControlled_m_flow exh( redeclare package Medium = MediumA, addPowerToMedium=false, nominalValuesDefineDefaultPressureCurve=true, dp_nominal=1200, inputType=Annex60.Fluid.Types.InputType.Constant, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, filteredSpeed=false, m_flow_nominal=0.1*m_flow_nominal) "Constant air exhaust"; equation connect(hvacAda.ports[3], exh.port_a); connect(exh.port_b, out.ports[3]); connect(con.ports[3], vol.ports[3]); end ThermalZoneHVACWithExhaust;
